미국 구축함 DDG 총 62 척( 52 척 운용+4척 건조중+6척 설계) (2)

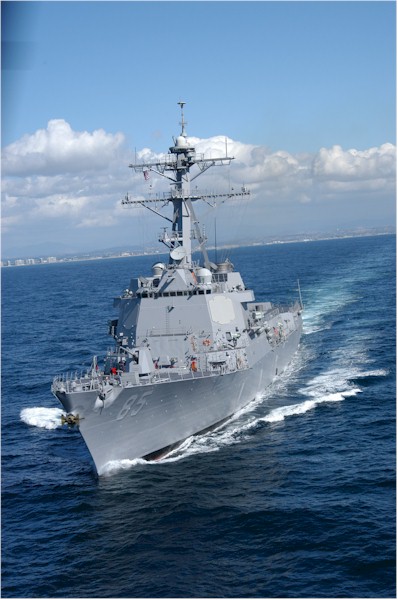

DDG 85 - USS McCampbell
Keel Laid: July 15, 1999
Launched: July 2, 2000
Commissioned: August 17, 2002
Builder: Ingalls Shipbuilding, West Bank, Pascagoula, Miss.
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
Homeport: Yokosuka, Japan
DDG 86 - USS Shoup
Keel Laid: December 13, 1999
Launched: November 22, 2000
Commissioned: June 22, 2002
Builder: Ingalls Shipbuilding, West Bank, Pascagoula, Miss.
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46 MOD
5A Torpedoes)
Homeport: Everett, WA.
DDG 87 - USS Mason
Keel Laid: January 19, 2000
Launched: June 23, 2001
Commissioned: April 12, 2003
Builder: Bath Iron Works, Bath, Maine
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46 MOD
5A Torpedoes)
Homeport: Norfolk, VA.
DDG 88 - USS Preble
Keel Laid: June 22, 2000
Launched: June 1, 2001
Commissioned: November 9, 2002
Builder: Ingalls Shipbuilding, West Bank, Pascagoula, Miss.
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2)
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46 MOD
5A Torpedoes)
Homeport: San Diego, CA.

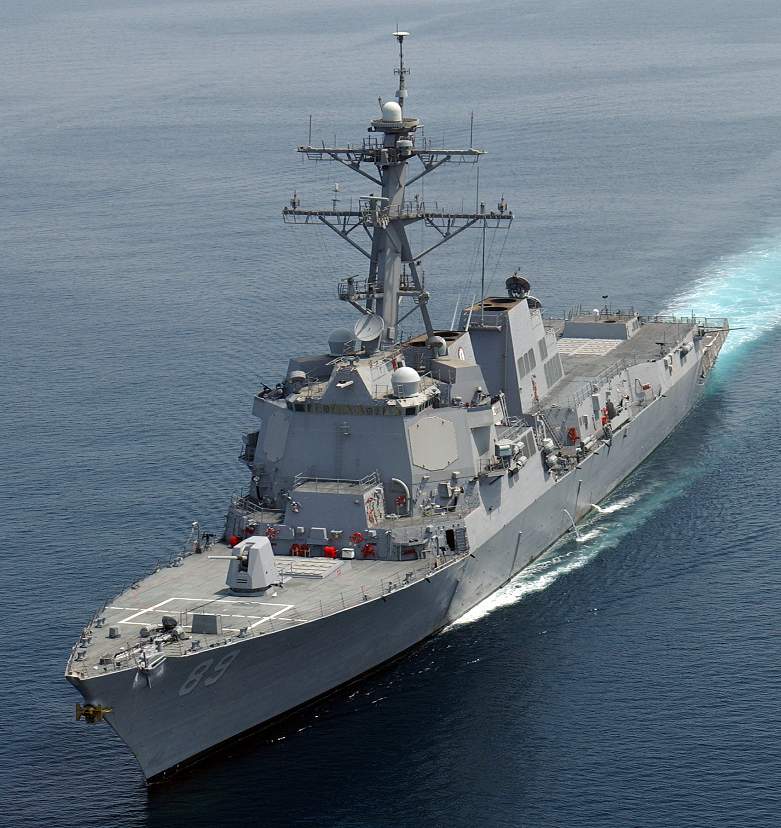

DDG 89 - USS Mustin
Keel Laid: January 15, 2000
Launched: December 15, 2001
Commissioned: July 26, 2003
Builder: Ingalls Shipbuilding, West Bank, Pascagoula, Miss.
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46 MOD
5A Torpedoes)
Homeport: Yokosuka, Japan

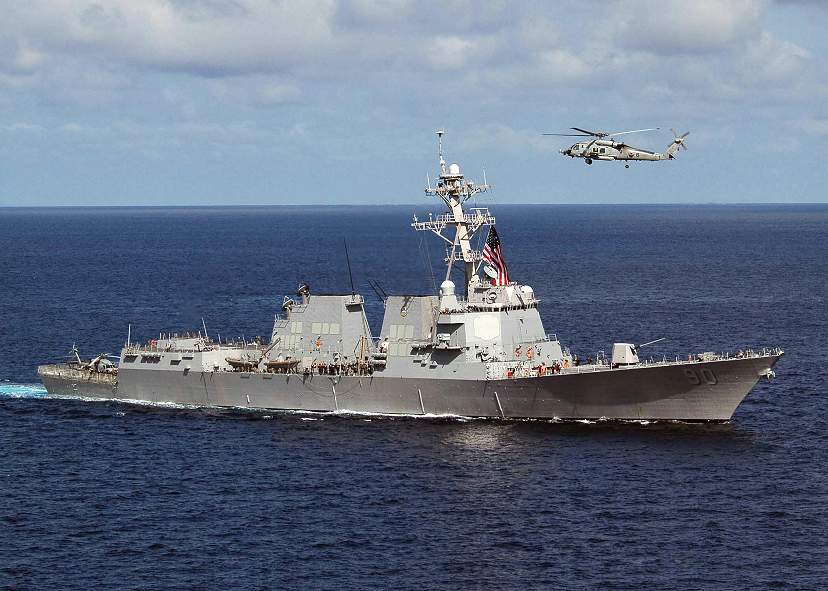

DDG 90 - USS Chafee
Keel Laid: May 5, 2001
Launched: November 11, 2002
Commissioned: October 18, 2003
Builder: Bath Iron Works, Bath, Maine
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46 MOD
5A Torpedoes)
Homeport: Pearl Harbor, HI.

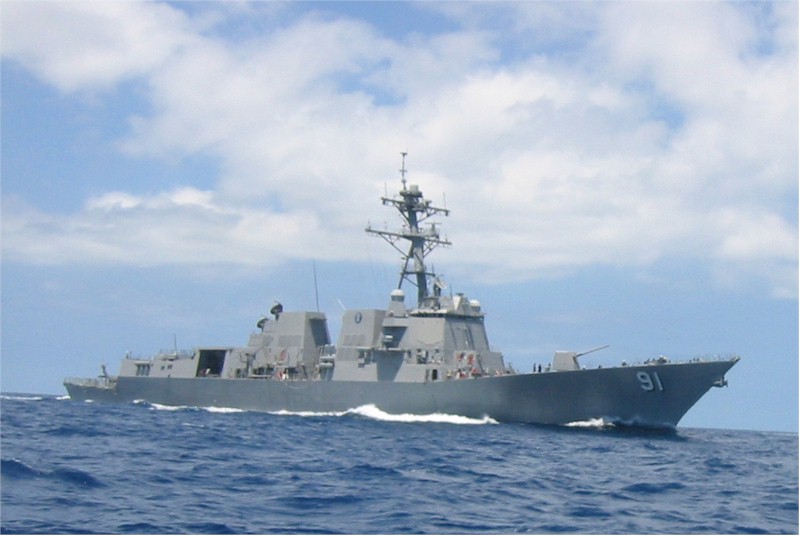

DDG 91 - USS Pinckney
Keel Laid: July 16, 2001
Launched: June 29, 2002
Commissioned: May 29, 2004
Builder: Ingalls Shipbuilding, West Bank, Pascagoula, Miss.
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46 MOD
5A Torpedoes)
Homeport: San Diego, CA.

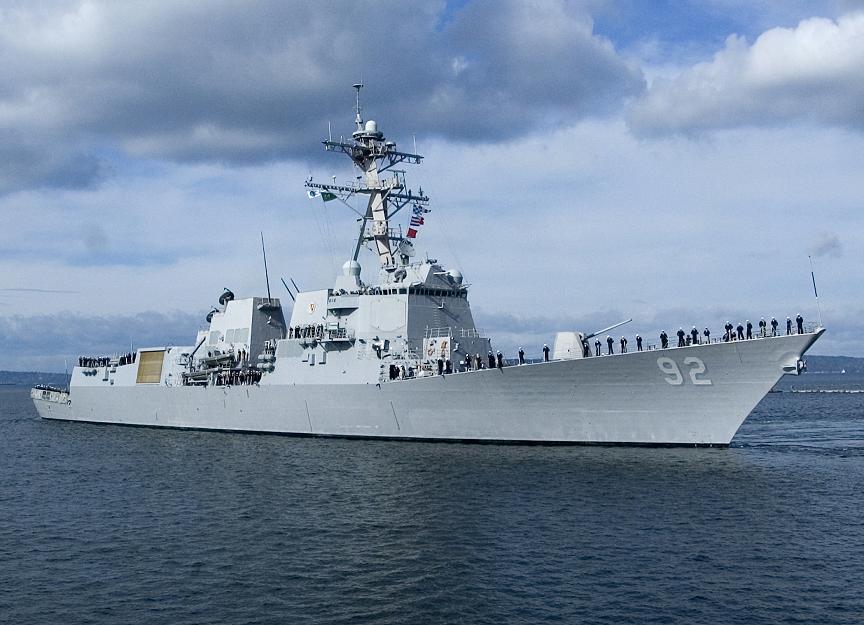

DDG 92 - USS Momsen
Keel Laid: November 16, 2002
Launched: August 9, 2003
Commissioned: August 28, 2004
Builder: Bath Iron Works, Bath, Maine
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46 MOD
5A Torpedoes)
Homeport: Everett, WA.
DDG 93 - USS Chung-Hoon
Keel Laid: January 14, 2002
Launched: January 11, 2003
Commissioned: September 18, 2004
Builder: Ingalls Shipbuilding, West Bank, Pascagoula, Miss.
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
Homeport: Pearl Harbor, HI.

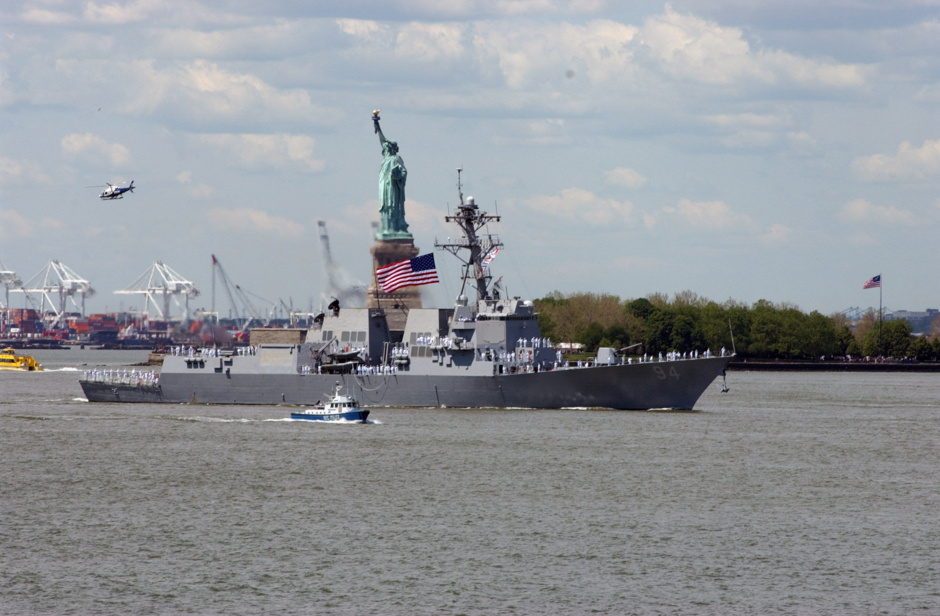

DDG 94 - USS Nitze
Keel Laid: September 20, 2002
Launched: April 17, 2004
Commissioned: March 5, 2005
Builder: Bath Iron Works, Bath, Maine
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
Homeport: Norfolk, VA
DDG 95 - USS James E. Williams
Keel Laid: July 15, 2002
Launched: June 28, 2003
Commissioned: December 11, 2004
Builder: Ingalls Shipbuilding, West Bank, Pascagoula, Miss.
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
Homeport: Norfolk, VA.

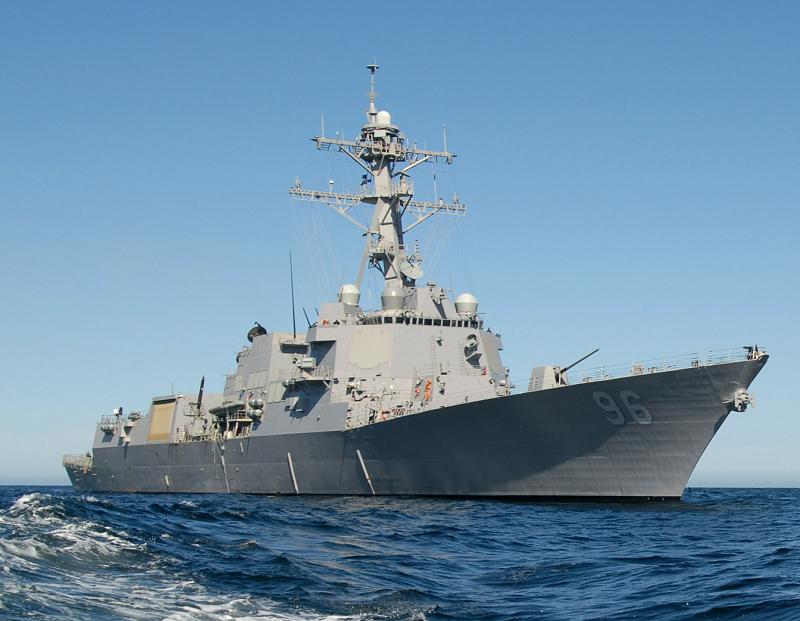

DDG 96 - USS Bainbridge
Keel Laid: May 7, 2003
Launched: November 13, 2004
Commissioned: November 12, 2005
Builder: Bath Iron Works, Bath, Maine
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
Homeport: Norfolk, VA.
DDG 97 - USS Halsey
Keel Laid: January 13, 2002
Launched: January 17, 2004
Commissioned: July 30, 2005
Builder: Ingalls Shipbuilding, West Bank, Pascagoula, Miss.
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
Homeport: San Diego, CA.

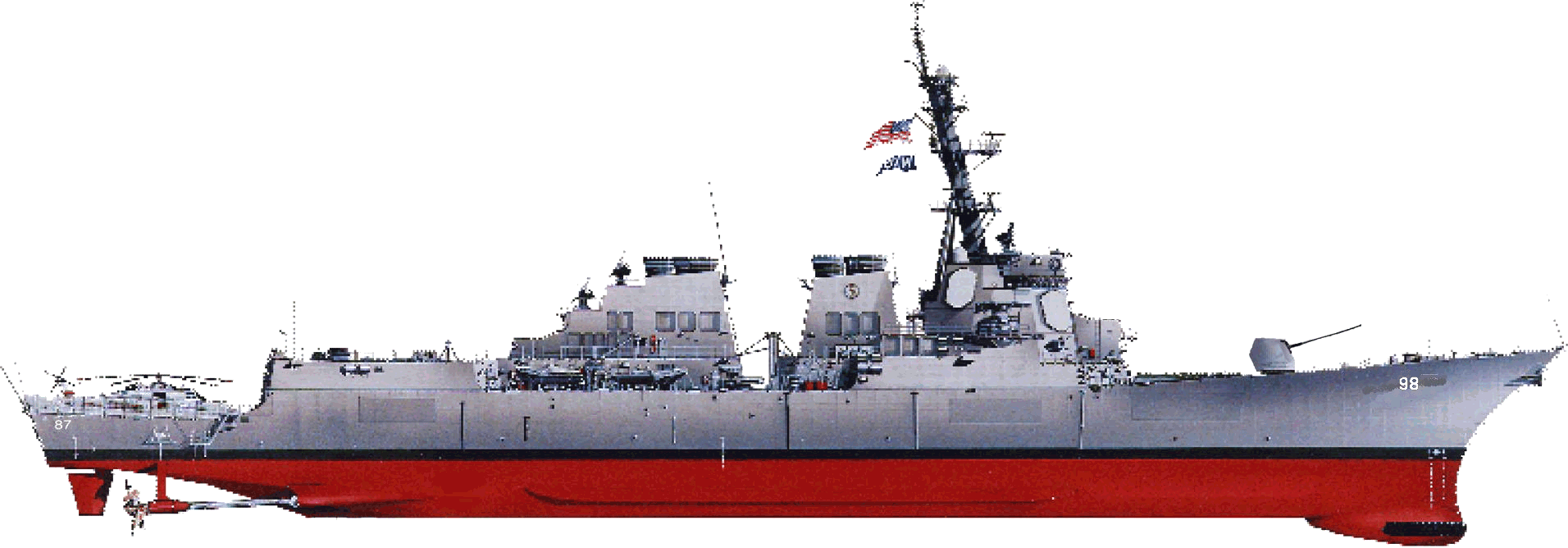

DDG 98 - USS Forrest Sherman
Keel Laid: August 7, 2003
Launched: October 2, 2004
Commissioned: January 28, 2006
Builder: Ingalls Shipbuilding, West Bank, Pascagoula, Miss.
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
Homeport: Norfolk, VA
DDG 99 - USS Farragut
Keel Laid: January 9, 2004
Launched: July 23, 2005
Commissioned: June 10, 2006
Builder: General Dynamics Bath Iron Works, Bath, Maine
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
Homeport: Mayport, FL.
DDG 100 - USS Kidd
Keel Laid: April 29, 2004
Launched: January 22, 2005
Commissioned: June 9, 2007
Builder: Northroop Grumman Ship Systems, Ingalls Operations,
Pascagoula, MS.
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
Homeport: San Diego, CA.
DDG 101 - USS Gridley
Keel Laid: July 30, 2004
Launched: February 11, 2006
Commissioned: February 10, 2007
Builder: General Dynamics Bath Iron Works, Bath, Maine
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
Homeport: San Diego, CA.
DDG 102 - USS Sampson
|
Ordered: |
13 September 2002 |
|
Laid down: |
20 March 2005 |
|
Launched: |
16 September 2006 |
|
Commissioned: |
3 November 2007 |
|
Decommissioned: |
|
|
Status: |
Active in commission |
|
Struck: |
|
|
General Characteristics | |
|
Displacement: |
9,200 tons |
|
Length: |
509 ft 6 in (155.3 m) |
|
Beam: |
66 ft (20.1 m) |
|
Draught: |
31 ft (9.4 m) |
|
Propulsion: |
4 × General Electric LM2500-30 gas turbines, 2 shafts, 100,000 shp (75 MW) |
|
Speed: |
30+ knots |
|
Range: |
|
|
Complement: |
380 officers and enlisted |
|
Armament: |
1 x 32 cell, 1 x 64 cell Mk 41 vertical launch systems, 96 x RIM-67 SM-2, BGM-109 Tomahawk or RUM-139 VL-Asroc, missiles1 x 5/62 in (127/62 mm), 2 x 25 mm, 4 x 12.7 mm guns2 x Mk 46 triple torpedo tubes |
|
Aircraft: |
2 x SH-60 Sea Hawk helicopters |
|
Motto: |
Through Courage and Arms |
*************************************************
DDG 103 - USS Truxtun
|
Ordered: |
13 September 2002 |
|
Builder: |
NGSS Ingalls, Pascagoula, Mississippi |
|
Laid down: |
11 April 2005 |
|
Launched: |
2 June 2007 |
|
Commissioned: |
|
|
Decommissioned: |
|
|
Status: |
Construction |
|
Struck: |
|
|
General Characteristics | |
|
Displacement: |
9,200 tons |
|
Length: |
509 ft 6 in (155.3 m) |
|
Beam: |
66 ft (20.1 m) |
|
Draught: |
31 ft (9.4 m) |
|
Propulsion: |
4 × General Electric LM2500-30 gas turbines, 2 shafts, 100,000 shp (75 MW) |
|
Speed: |
30+ knots |
|
Range: |
|
|
Complement: |
380 officers and enlisted |
|
Armament: |
1 x 32 cell, 1 x 64 cell Mk 41 vertical launch systems, 96 x RIM-67 SM-2, BGM-109 Tomahawk or RUM-139 VL-Asroc, missiles1 x 5/62 in (127/62 mm), 2 x 25 mm, 4 x 12.7 mm guns2 x Mk 46 triple torpedo tubes |
|
Aircraft: |
2 x SH-60 Sea Hawk helicopters |
|
Motto: |
Pursue Attack Vanquish |
DDG 104 - USS Sterett
|
Ordered: |
13 September 2002 |
|
Laid down: |
17 November 2005 |
|
Launched: |
19 May 2007 |
|
Commissioned: |
August 2008 (scheduled) |
|
Homeport: |
San Diego (planned) |
|
General Characteristics | |
|
Displacement: |
6,600 tons light, 9,200 tons full, 2,600 tons dead |
|
Length: |
509 ft 6 in (155.3 m) overall, 471 ft (143.6 m) waterline |
|
Beam: |
66 ft (20.1 m) extreme, 59 ft (18 m) waterline |
|
Draft: |
31 ft (9.4 m) maximum, 22 ft (6.7 m) limit |
|
Propulsion: |
Four General Electric LM2500-30 gas turbines, two shafts, 100,000 shp (75 MW) |
|
Speed: |
30+ knots (56 km/h) designed |
|
Complement: |
32 officers, 348 enlisted |
|
Armament: |
1 x 32 cell, 1 x 64 cell Mark 41 vertical launch systems, 96 RIM-67 SM-2, BGM-109 Tomahawk or RUM-139 VL-Asroc, missiles1 x 5/62 in (127/62 mm) gun, 2 x 25 mm cannon, 4 x 12.7 mm machineguns2 x Mark 46 triple torpedo tubes |
|
Aircraft: |
two SH-60 Sea Hawk helicopters |
|
Motto: |
Forever Dauntless |
DDG 105 - USS Dewey
|
Ordered: |
13 September 2002 |
|
Laid down: |
4 October 2006 |
|
Launched: |
|
|
Commissioned: |
|
|
Decommissioned: |
|
|
Status: |
Authorized |
|
Struck: |
|
|
General Characteristics | |
|
Displacement: |
9,200 tons |
|
Length: |
509 ft 6 in (155.3 m) |
|
Beam: |
66 ft (20.1 m) |
|
Draught: |
31 ft (9.4 m) |
|
Propulsion: |
4 × General Electric LM2500-30 gas turbines, 2 shafts, 100,000 shp (75 MW) |
|
Speed: |
30+ knots |
|
Range: |
|
|
Complement: |
380 officers and enlisted |
|
Armament: |
1 x 32 cell, 1 x 64 cell Mk 41 vertical launch systems, 96 x RIM-67 SM-2, BGM-109 Tomahawk or RUM-139 VL-Asroc, missiles1 x 5/62 in (127/62 mm), 2 x 25 mm, 4 x 12.7 mm guns2 x Mk 46 triple torpedo tubes |
|
Aircraft: |
2 x SH-60 Sea Hawk helicopters |
Keel Laid: October 4, 2006
Launched: 2008
Commissioned: 2009
DDG 106 - USS Stockdale
|
Ordered: |
13 September 2002 |
|
Laid down: |
8 August 2006 |
|
Launched: |
Jan/Feb, 2008 (Scheduled) |
|
Commissioned: |
March, 2009 (Scheduled) |
|
Homeport: |
San Diego, CA |
|
Decommissioned: | |
|
Status: |
Authorized |
|
Struck: | |
|
General characteristics | |
|
Displacement: |
9,200 tons |
|
Length: |
509 ft 6 in (155.3 m) |
|
Beam: |
66 ft (20.1 m) |
|
Draught: |
31 ft (9.4 m) |
|
Propulsion: |
4 × General Electric LM2500-30 gas turbines, 2 shafts, 100,000 shp (75 MW) |
|
Speed: |
30+ knots |
|
Range: |
|
|
Complement: |
380 officers and enlisted |
|
Armament: |
1 x 32 cell, 1 x 64 cell Mk 41 vertical launch systems, 96 x RIM-67 SM-2, BGM-109 Tomahawk or RUM-139 VL-Asroc, missiles1 x 5/62 in (127/62 mm), 2 x 25 mm, 4 x 12.7 mm guns2 x Mk 46 triple torpedo tubes |
|
Aircraft: |
2 x SH-60 Sea Hawk helicopters |
DDG 107 - USS GRAVELY
Keel Laid: 2007
Launched: 2009
Commissioned: 2010
Builder: Northroop Grumman Ship Systems,
Ingalls Operations, Pascagoula, MS.
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
DDG 108 - USS WAYNE E. MEYER
Keel Laid: May 18, 2007
Launched: 2009
Commissioned: 2010
Builder: General Dynamics Bath Iron Works, Bath, Maine
Propulsion system: 4 - LM2500 GE Marine Gas Turbines
Propellers: two
Length, overall: 509.5 - 513.0 feet
Beam: Max 66 feet
Draft: 31 feet
Displacement: 9,192-9,217 tons full load
Speed: 31 knots
Crew: 32 Officers 348 Enlisted
Aircraft: two SH-60B/R/F (LAMPS MK III) helicopters
Mine Warfare: AN/WLD-1 Remote Minehunting System (RMS)
Armament:
- 1 MK-45 MOD 4 5"/62 caliber lightweight gun
- 2 MK-41 VLS (96 cells) for Standard missiles (SM-2),
Tomahawk ASM/LAM and (NATO) Evolved Sea Sparrow (RIM-7)
- 2 MK-32 MOD 15 triple torpedo tubes (six MK 50/46
MOD 5A Torpedoes)
DDG 109 - USS Jason Dunham
|
Ordered: |
13 September 2002 |
|
Laid down: |
|
|
Launched: |
|
|
Commissioned: |
|
|
Decommissioned: |
|
|
Status: |
Authorized |
|
Struck: |
|
|
General Characteristics | |
|
Displacement: |
9,200 tons |
|
Length: |
509 ft 6 in (155.3 m) |
|
Beam: |
66 ft (20.1 m) |
|
Draught: |
31 ft (9.4 m) |
|
Propulsion: |
4 × General Electric LM2500-30 gas turbines, 2 shafts, 100,000 shp (75 MW) |
|
Speed: |
30+ knots |
|
Range: |
|
|
Complement: |
380 officers and enlisted |
|
Armament: |
1 × 32 cell, 1 x 64 cell Mk 41 vertical launch systems, 96 × RIM-67 SM-2, BGM-109 Tomahawk or RUM-139 VL-Asroc, missiles 1 × 5/62 in (127/62 mm), 2 × 25 mm, 4 × 12.7 mm guns 2 × Mk 46 triple torpedo tubes 2 × Mk. 15 Phalanx CIWS or RIM-116 RAM |
|
Aircraft: |
2 × SH-60 Sea Hawk helicopters |
|
Motto: |
Semper Fidelis, Semper Fortis ("Always faithful, always strong") |
DDG 110 - USS William P. Lawrence
|
Ordered: |
13 September 2002 |
|
Laid down: |
|
|
Launched: |
|
|
Commissioned: |
|
|
Decommissioned: |
|
|
Status: |
Authorized |
|
Struck: |
|
|
General Characteristics | |
|
Displacement: |
9,200 tons |
|
Length: |
509 ft 6 in (155.3 m) |
|
Beam: |
66 ft (20.1 m) |
|
Draught: |
31 ft (9.4 m) |
|
Propulsion: |
4 × General Electric LM2500-30 gas turbines, 2 shafts, 100,000 shp (75 MW) |
|
Speed: |
30+ knots |
|
Range: |
|
|
Complement: |
380 officers and enlisted |
|
Armament: |
1 x 32 cell, 1 x 64 cell Mk 41 vertical launch systems, 96 x RIM-67 SM-2, BGM-109 Tomahawk or RUM-139 VL-Asroc, missiles1 x 5/62 in (127/62 mm), 2 x 25 mm, 4 x 12.7 mm guns2 x Mk 46 triple torpedo tubes |
|
Aircraft: |
2 x SH-60 Sea Hawk helicopters |
DDG 111 - USS Spruance
|
Ordered: |
13 September 2002 |
|
Laid down: |
|
|
Launched: |
|
|
Commissioned: |
|
|
Decommissioned: |
|
|
Status: |
Authorized |
|
Struck: |
|
|
General Characteristics | |
|
Displacement: |
9,200 tons |
|
Length: |
509 ft 6 in (155.3 m) |
|
Beam: |
66 ft (20.1 m) |
|
Draught: |
31 ft (9.4 m) |
|
Propulsion: |
4 × General Electric LM2500-30 gas turbines, 2 shafts, 100,000 shp (75 MW) |
|
Speed: |
30+ knots |
|
Range: |
|
|
Complement: |
380 officers and enlisted |
|
Armament: |
1 x 32 cell, 1 x 64 cell Mk 41 vertical launch systems, 96 x RIM-67 SM-2, BGM-109 Tomahawk or RUM-139 VL-Asroc, missiles1 x 5/62 in (127/62 mm), 2 x 25 mm, 4 x 12.7 mm guns2 x Mk 46 triple torpedo tubes |
|
Aircraft: |
2 x SH-60 Sea Hawk helicopters |
DDG 112 마지막 구축함
**************************************
DDG 1000 - USS Zumwalt
|
Builders: |
Northrop Grumman |
|
Operators: |
United States Navy |
|
Preceded by: |
Arleigh Burke class destroyer |
|
Followed by: |
N/A (latest destroyer class authorized) |
|
Ships planned: |
USS Zumwalt, six others planned |
|
General Characteristics | |
|
Displacement: |
14,564 tons |
|
Length: |
600 ft (183 m) |
|
Beam: |
79.1 ft (24.1 m) |
|
Draft: |
27.6 ft (8.4 m) |
|
Propulsion |
2 Rolls-Royce Marine Trent-30 gas turbines and emergency diesel generators, 78 MW |
|
Speed: |
30.3 kt (56 km/h) |
|
Complement: |
140 |
|
Armament: |
20 × MK 57 VLS modules, comprising a total of 80 missiles Evolved Sea Sparrow Missile (ESSM) Tactical Tomahawk Block IV Standard Missile 2 Block III (SM-2) Vertical Launch Anti-Submarine Rocket (ASROC) 2 × 155 mm Advanced Gun System 920 × 155 mm total; 600 in automated store + Auxiliary store room with up to 320 rounds (non-automatic) as of April 2005 70-100 LRLAP rounds planned as of 2005 of total 2 × Mk 110 57 mm gun (CIWS) |
|
Sensors: |
AN/SPY-3 Multi-Function Radar (MFR) (X-band, scanned array)Volume Search Radar (VSR) (S-band, scanned array) |
|
Aircraft carried: |
2 SH-60 LAMPS helicopters or 1 MH-60R helicopter |
[세계삼한역사연구-한부울]
끝
'무기리스트 > 세계전투함정' 카테고리의 다른 글
| 고속쌍동선 HSV (High Speed Vessel) (0) | 2007.12.09 |
|---|---|
| 미국 차세대 구축함 DDX-1000(USS Zumwalt) (0) | 2007.11.21 |
| 미국 구축함 DDG 전체 명세(1) (0) | 2007.11.21 |
| 미국 호위함 FFG 전체 명세 (0) | 2007.11.20 |
| 미국 연안전투함 명세-USS Independence (LCS-1.2), Freedom (LCS-1) (0) | 2007.11.20 |
