Ariane 5 -(프랑스 로켓)

Ariane 5



Fact sheet
Function	Heavy launch vehicle
Manufacturer	EADS Astrium for ESA and Arianespace
Country of origin	Europe
Size
Height	59 m (193 ft)
Diameter	5.4 m (17.7 ft)
Mass	777,000 kg (1,712,000 lb)
Stages	2
Capacity
Payload to LEO	G:16,000 kg ECA:21,000 kg

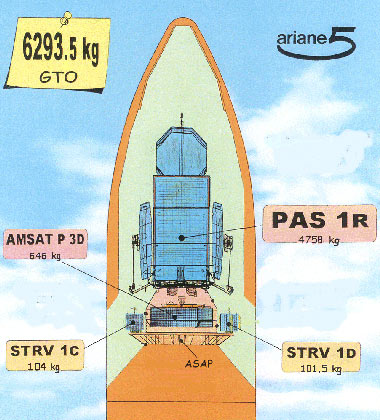

Payload to GTO	G:6,800 kg ECA:10,500 kg
Launch History
Status	Active

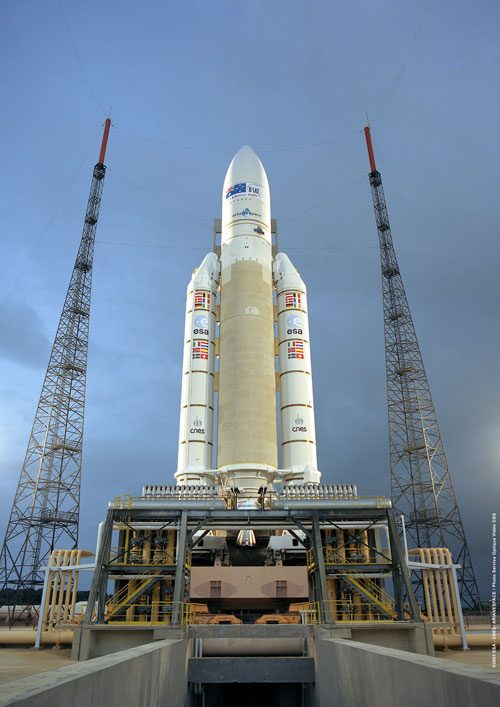

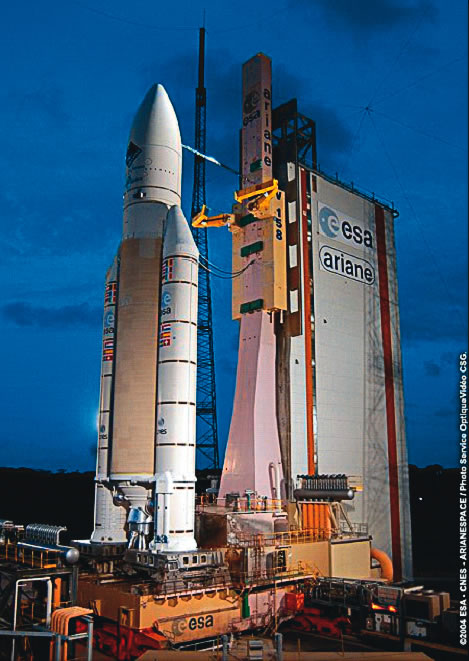

Launch sites	ELA-3, Guiana Space Center
Total launches	33 (G: 22, ECA: 11)
Successes	29 (G: 19, ECA: 10)
Failures	2 (G: 1, ECA: 1)
Partial failures	2 (G)
Maiden flight	G: 4 June 1996 ECA: 11 December 2002
Boosters (Stage 0) - P230
No boosters	2
Engines	1 Solid
Thrust	6,470 kN (1,454,510 lbf)
Specific impulse	275 sec
Burn time	129 seconds
Fuel	Solid
First Stage (Ariane 5G)
Engines	1 Vulcain
Thrust	1,114 kN (250,437 lbf)
Specific impulse	430 sec
Burn time	589 seconds
Fuel	LH2/LOX
First Stage (Ariane 5 ECA)
Engines	1 Vulcain 2
Thrust	1,340 kN (301,243 lbf)
Specific impulse	431 sec
Burn time	650 seconds
Fuel	LH2/LOX
Second Stage (Ariane 5G)
Engines	1 Aestus
Thrust	27.4 kN (6,160 lbf)
Specific impulse	324 sec
Burn time	1,100 seconds
Fuel	N2O4/MMH
Second Stage (Ariane 5 ECA)
Engines	1 HM7-B
Thrust	64.7 kN (14,545 lbf)
Specific impulse	446 sec
Burn time	960 seconds
Fuel	LH2/LOX
