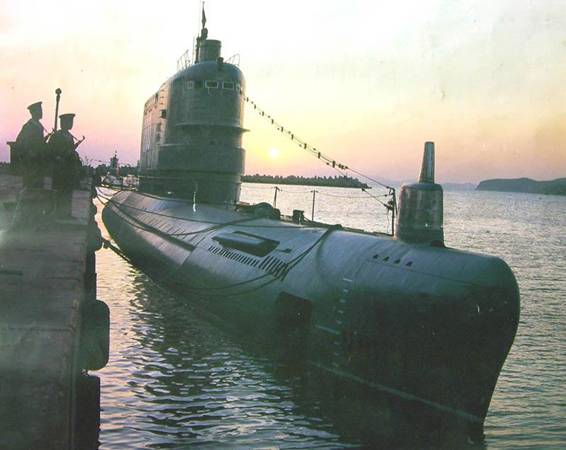

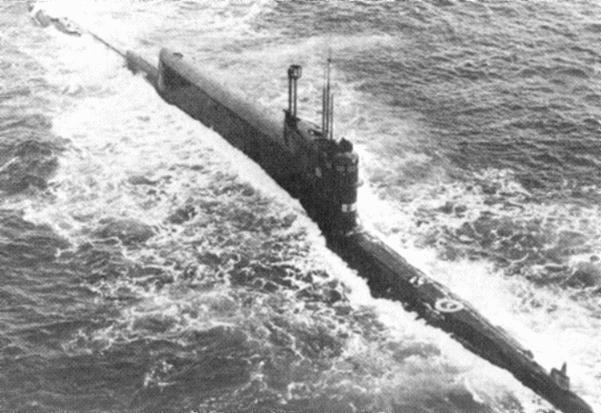

북한보유 잠수함-Golf class submarine



북한보유 잠수함-Golf class submarine

(북한보유 2800t : 1993년 10척 해체개선)

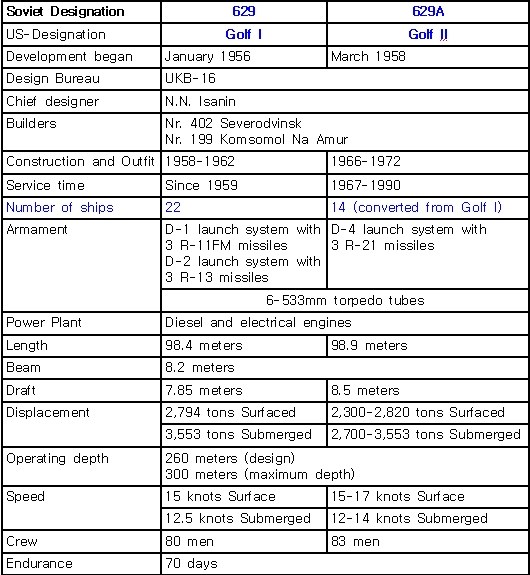

General Characteristics
Displacement:	2,794 tons surfaced/3,553 tons submerged (629) 2,300-2,820 tons surfaced/2,700-3,553 tons submerged (629A)
Length:	98.4 m (629) 98.9 m (629A)
Beam:	8.2 m
Draught:	7.85 m (629) 8.5 m (629A)
Propulsion and power:	3 × diesel engines, each 2,000 bhp (1500 kW); 3 × electric motors, 5,200 shp (3880 kW); 3 shafts.
Speed:	surface - 17kt, 9.500 nm/5kt; submerged - 12kt
Test depth:	260 m (design) 300 m (maximum)
Range:	70 days endurance
Complement:	80 (629) 83 (629A)
Armament:	3 × missile tubes 3 × Project 629 boats D-1 launch system with R-11FM missiles Remaining boats D-2 launch system with R-13 missiles 1966 onwards 629A upgrade D-4 launch system with R-21missiles 6 × 533 mm torpedo tubes
