미국항공모함(US Aircraft Carriers CV,CVN)전체 명세







      Aircraft Carriers - CV/CVN   (1+12척 핵항모)

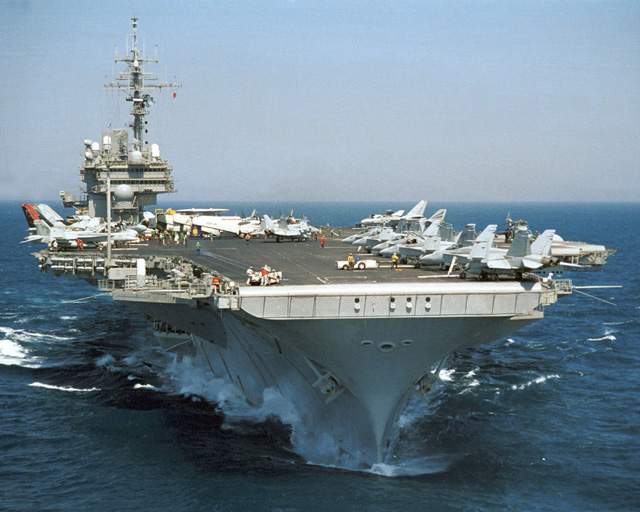

CV 63 -키티호크 USS Kitty Hawk



       Keel Laid: December 27, 1956

         Launched: May 21, 1960

         Commissioned: April 29, 1961

         Decommissioned: 2008

         Builder: New York Shipbuilding Corp., Camden, N.J.

         Propulsion system: eight Steam Boilers

         Length, overall: 1046,5 feet (319 meters)

         Flight Deck Width: 252 feet (76.8 meters)

         Area of flight deck: about 4,5 acres

         Beam: 129,6 feet (39.5 meters)

         Draft: 35,8 feet (10.9 meters)

         Displacement: approx. 82,200 tons full load

         Speed: 30+ knots

         Planes: approx. 66

         Crew: Ship: 2,900 Air Wing: 2,480

         Armament:

          - two Mk 29 NATO Sea Sparrow launchers

          - two 20mm Phalanx CIWS Mk 15

          - two Rolling Airframe Missile (RAM) Systems

         Homeport: Yokosuka, Japan



CVN 65 -엔터프라이즈 USS Enterprise



        Keel Laid: February 4, 1958

          Launched: September 24, 1960

          Commissioned: November 25, 1961



          Builder: Newport News Shipbuilding Co., Newport News, Va.

          Propulsion system: eight A2W nuclear reactors, four steam

          turbine, four shafts, 280,000 shp (210 MW)

          Lenght, overall: 1,123 feet (342.3 meters)

          Flight Deck Width: 257 feet (78.4 meters)

          Area of flight deck: about 4,5 acres (18211.5 m2)

          Beam: 132.8 feet (40.5 meters)

          Draft: 39 feet (11.9 meters)

          Displacement: approx. 93,500 tons full load

          Speed: 30+ knots

          Planes: approx. 66

          Crew: Ship: 3000 ; Air Wing: 1800

          Armament:

          - two Mk 29 NATO Sea Sparrow launchers

          - two 20mm Phalanx CIWS Mk 15

          - two Rolling Airframe Missile (RAM) Systems

          Homeport: Norfolk, VA.

CVN 68 -니미츠 USS Nimitz



        Keel Laid: June 22, 1968

          Launched: May 13, 1972

          Commissioned: May 3, 1975

          Builder: Newport News Shipbuilding Co., Newport News, Va.

          Propulsion system: two Westinghouse A4W nuclear reactors,

           four steam turbines, four shafts,  260,000 shp (194 MW)

          Lengths, overall: 1.092 feet (332.85 meters)

          Flight Deck Width: 252 feet (76.8 meters)

          Area of flight deck: about 4.5 acres (18211.5 m2)

          Beam: 134 feet (40.84 meters)

          Draft: 37.7 feet (11.3 meters)

          Displacement: approx. 101,000-104,000 tons full load

          Speed: 30+ knots

          Planes: 90 fixed wing and helicopters

          Crew: Ship: 3,200 ; Air Wing: 2,480

          Armament:

           - two Rolling Airframe Missile (RAM) launchers

           - two Mk 29 NATO Sea Sparrow launchers

          Homeport: San Diego, CA.

CVN 69 -아이젠하워 USS Dwight D. Eisenhower



        Keel Laid: August 15, 1970

          Launched: October 11, 1975

          Commissioned: October 18, 1977

          Builder: Newport News Shipbuilding Co., Newport News, Va.

          Propulsion system: two Westinghouse A4W nuclear reactors,

           four steam turbines, four shafts,  260,000 shp (194 MW)

          Lengths, overall: 1.092 feet (332.85 meters)

          Flight Deck Width: 252 feet (76.8 meters)

          Area of flight deck: about 4.5 acres (18211.5 m2)

          Beam: 134 feet (40.84 meters)

          Draft: 37.7 feet (11.3 meters)

          Displacement: approx. 101,000-104,000 tons full load

          Speed: 30+ knots

          Planes: 90 fixed wing and helicopters

          Crew: Ship: 3,200 ; Air Wing: 2,480

          Armament:

           - two Rolling Airframe Missile (RAM) launchers

           - two Mk 29 NATO Sea Sparrow launchers

          Homeport: Norfolk, VA.

CVN 70 -칼 비존 USS Carl Vinson



        Keel Laid: October 11, 1975

          Launched: March 15, 1980

          Commissioned: March 13, 1982

          Builder: Newport News Shipbuilding Co., Newport News, Va.

          Propulsion system: two Westinghouse A4W nuclear reactors,

           four steam turbines, four shafts,  260,000 shp (194 MW)

          Lengths, overall: 1.092 feet (332.85 meters)

          Flight Deck Width: 252 feet (76.8 meters)

          Area of flight deck: about 4.5 acres (18211.5 m2)

          Beam: 134 feet (40.84 meters)

          Draft: 37.7 feet (11.3 meters)

          Displacement: approx. 101,000-104,000 tons full load

          Speed: 30+ knots

          Planes: 90 fixed wing and helicopters

          Crew: Ship: 3,200 ; Air Wing: 2,480

          Armament:

           - two Rolling Airframe Missile (RAM) launchers

           - two Mk 57 Mod 3 NATO Sea Sparrow launchers

           - three 20mm Phalanx CIWS Mk 15

          Homeport: Norfolk, VA.

CVN 71 -루즈벨트 USS Theodore Roosevelt



        Keel Laid: October 31, 1981

          Launched: August 27, 1984

          Commissioned: October 25, 1986

          Builder: Newport News Shipbuilding Co., Newport News, Va.

          Propulsion system: two Westinghouse A4W nuclear reactors,

           four steam turbines, four shafts,  260,000 shp (194 MW)

          Lengths, overall: 1.092 feet (332.85 meters)

          Flight Deck Width: 252 feet (76.8 meters)

          Area of flight deck: about 4.5 acres (18211.5 m2)

          Beam: 134 feet (40.84 meters)

          Draft: 37.7 feet (11.3 meters)

          Displacement: approx. 101,000-104,000 tons full load

          Speed: 30+ knots

          Planes: 90 fixed wing and helicopters

          Crew: Ship: 3,200 ; Air Wing: 2,480

          Armament:

           - two Rolling Airframe Missile (RAM) launchers

           - two Mk 57 Mod 3 NATO Sea Sparrow launchers

          Homeport: Norfolk, VA.

CVN 72 -아브라함 링컨 USS Abraham Lincoln



        Keel Laid: November 3, 1984

          Launched: February 13, 1988

          Commissioned: November 11, 1989

          Builder: Newport News Shipbuilding Co., Newport News, Va.

          Propulsion system: two Westinghouse A4W nuclear reactors,

           four steam turbines, four shafts,  260,000 shp (194 MW)

          Lengths, overall: 1.092 feet (332.85 meters)

          Flight Deck Width: 252 feet (76.8 meters)

          Area of flight deck: about 4.5 acres (18211.5 m2)

          Beam: 134 feet (40.84 meters)

          Draft: 37.7 feet (11.3 meters)

          Displacement: approx. 101,000-104,000 tons full load

          Speed: 30+ knots

          Planes: 90 fixed wing and helicopters

          Crew: Ship: 3,200 ; Air Wing: 2,480

          Armament:

           - two Rolling Airframe Missile (RAM) launchers

           - two Mk 57 Mod 3 NATO Sea Sparrow launchers

           - three 20mm Phalanx CIWS Mk 15

          Homeport: Everett, WA.

CVN 73 -조지 워싱톤 USS George Washington



        Keel Laid: August 25, 1986

          Launched: July 21, 1990

          Commissioned: July 4, 1992

          Builder: Newport News Shipbuilding Co., Newport News, Va.

          Propulsion system: two Westinghouse A4W nuclear reactors,

           four steam turbines, four shafts,  260,000 shp (194 MW)

          Lengths, overall: 1.092 feet (332.85 meters)

          Flight Deck Width: 252 feet (76.8 meters)

          Area of flight deck: about 4.5 acres (18211.5 m2)

          Beam: 134 feet (40.84 meters)

          Draft: 37.7 feet (11.3 meters)

          Displacement: approx. 101,000-104,000 tons full load

          Speed: 30+ knots

          Planes: 90 fixed wing and helicopters

          Crew: Ship: 3,200 ; Air Wing: 2,480

          Armament:

           - two Rolling Airframe Missile (RAM) launchers

           - two Mk 57 Mod 3 NATO Sea Sparrow launchers

           - three 20mm Phalanx CIWS Mk 15

          Homeport: Norfolk, VA.

CVN 74 -스텐니스 USS John C. Stennis



        Keel Laid: March 13, 1991

          Launched: November 11, 1993

          Commissioned: December 9, 1995

          Builder: Newport News Shipbuilding Co., Newport News, Va.

          Propulsion system: two Westinghouse A4W nuclear reactors,

           four steam turbines, four shafts,  260,000 shp (194 MW)

          Lengths, overall: 1.092 feet (332.85 meters)

          Flight Deck Width: 252 feet (76.8 meters)

          Area of flight deck: about 4.5 acres (18211.5 m2)

          Beam: 134 feet (40.84 meters)

          Draft: 37.7 feet (11.3 meters)

          Displacement: approx. 101,000-104,000 tons full load

          Speed: 30+ knots

          Planes: 90 fixed wing and helicopters

          Crew: Ship: 3,200 ; Air Wing: 2,480

          Armament:

           - two Rolling Airframe Missile (RAM) launchers

           - two Mk 57 Mod 3 NATO Sea Sparrow launchers

           - three 20mm Phalanx CIWS Mk 15

          Homeport: Bremerton, WA.



CVN 75 -트루먼 USS Harry S. Truman



        Keel Laid: November 29, 1993

          Launched: September 7, 1996

          Commissioned: July 25, 1998

          Builder: Newport News Shipbuilding Co., Newport News, Va.

          Propulsion system: two Westinghouse A4W nuclear reactors,

           four steam turbines, four shafts,  260,000 shp (194 MW)

          Lengths, overall: 1.092 feet (332.85 meters)

          Flight Deck Width: 252 feet (76.8 meters)

          Area of flight deck: about 4.5 acres (18211.5 m2)

          Beam: 134 feet (40.84 meters)

          Draft: 37.7 feet (11.3 meters)

          Displacement: approx. 101,000-104,000 tons full load

          Speed: 30+ knots

          Planes: 90 fixed wing and helicopters

          Crew: Ship: 3,200 ; Air Wing: 2,480

          Armament:

           - two Rolling Airframe Missile (RAM) launchers

           - two Mk 57 Mod 3 NATO Sea Sparrow launchers

           - three 20mm Phalanx CIWS Mk 15

          Homeport: Norfolk, VA.

CVN 76 -로널드 레이건 USS Ronald Reagan



        Keel Laid: February 12, 1998

          Launched: March 4, 2001

          Commissioned: July 12, 2003

          Builder: Newport News Shipbuilding Co., Newport News, Va.

          Propulsion system: two Westinghouse A4W nuclear reactors,

           four steam turbines, four shafts,  260,000 shp (194 MW)

          Lengths, overall: 1.092 feet (332.85 meters)

          Flight Deck Width: 252 feet (76.8 meters)

          Area of flight deck: about 4.5 acres (18211.5 m2)

          Beam: 134 feet (40.84 meters)

          Draft: 37.7 feet (11.3 meters)

          Displacement: approx. 101,000-104,000 tons full load

          Speed: 30+ knots

          Planes: 90 fixed wing and helicopters

          Crew: Ship: 3,200 ; Air Wing: 2,480

          Armament:

           - two Rolling Airframe Missile (RAM) launchers

           - two Mk 57 Mod 3 NATO Sea Sparrow launchers

          Homeport: San Diego, CA.

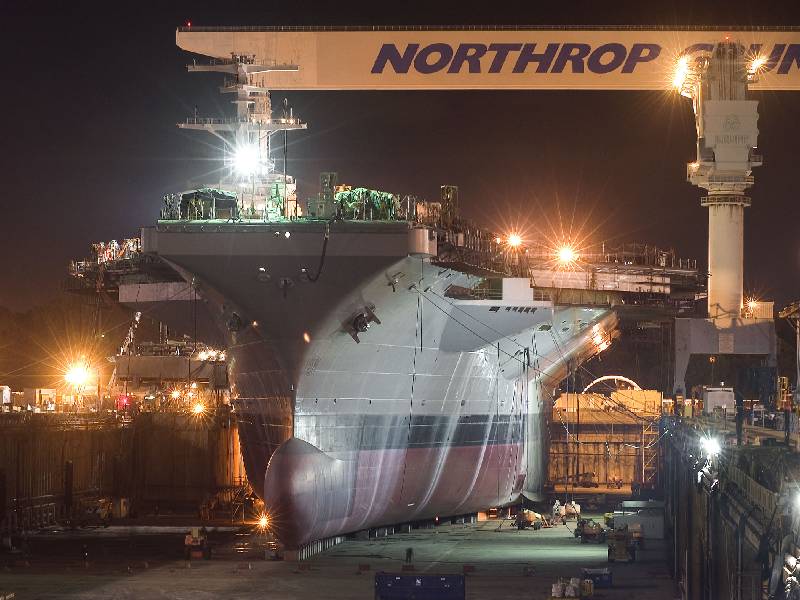

CVN 77 -조지 부시 USS George H.W. Bush





Ordered:	26 January 2001
Laid down:	6 September 2003
Launched:	Unknown
Christened:	7 October 2006
Commissioned:	Expected Mid 2009
Status:	building
General characteristics
Displacement:	101,000 to 104,000 tons full load
Length:	Overall: 1,092 ft (333 m) Waterline: 1,040 ft (317 m)
Beam:	Overall: 252 ft (76.8 m) Waterline: 134 ft (40.8 m)
Draught:	Maximum navigational: 37 ft (11.3 m) Limit: 41 ft (12.5 m)
Propulsion:	2 × Westinghouse A4W nuclear reactors 4 × steam turbines 4 × shafts 260,000 shp (194 MW)
Speed:	30+ knots (56+ km/h)
Range:	Essentially unlimited
Complement:	Ship's company: 3,200 Air wing: 2,480
Sensors and processing  systems:	SPS-48E 3-D air search radar SPS-49A(V)1 2-D air search radar Mk 23 target acquisition radar 2 × SPN-46 air traffic control radars SPN-43B air traffic control radar SPN-44 landing aid radars 3 × Mk 91 NSSM guidance systems 3 × Mk 95 radars
Electronic warfare and decoys:	SLQ-32A(V)4 Countermeasures suite SLQ-25A Nixie torpedo countermeasures
Armament:	2 × Mk 29 ESSM launcher 2 × RIM-116 Rolling Airframe Missile 3 × 20mm Phalanx CIWS
Armour:	Unknown
Aircraft carried:	90 fixed wing and helicopters
Motto:	Freedom at Work
Nickname:	N/A

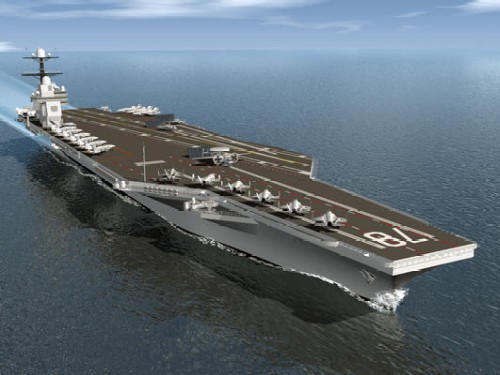

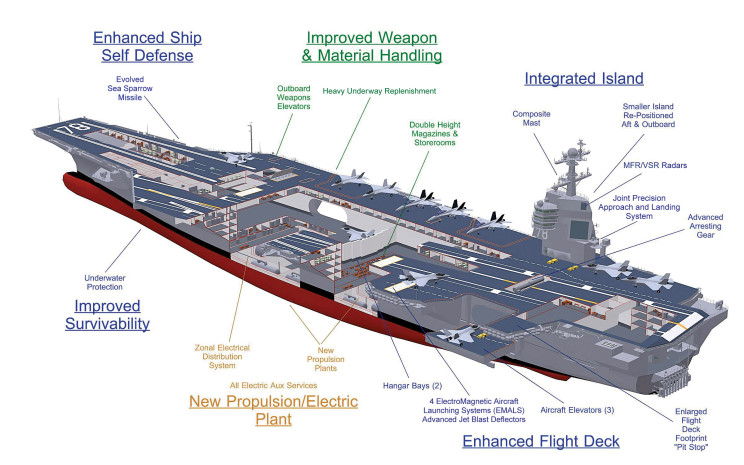

CVN 78 -제널드 포드 USS Gerald R. Ford





Ordered:	2006
Laid down:	est. 2009
Launched:
In service:	est. 2015
Status:	Currently in Design and Development stage
General characteristics
Displacement:	appx. 100,000 tons
Length:	1,092 feet (332.84m)
Beam:	134 feet(40.85m)
Propulsion:	2 x A1B reactor
Speed:	30+ knots
Range:	Essentially unlimited
Endurance:	Limited only by supplies on board
Complement:	4,660
Armament:	Surface-to-air missiles Close-in weapons systems
Aircraft carried:	More than 75
