도크형 상륙함 LPD 총16척 (11+5척 건조계획)

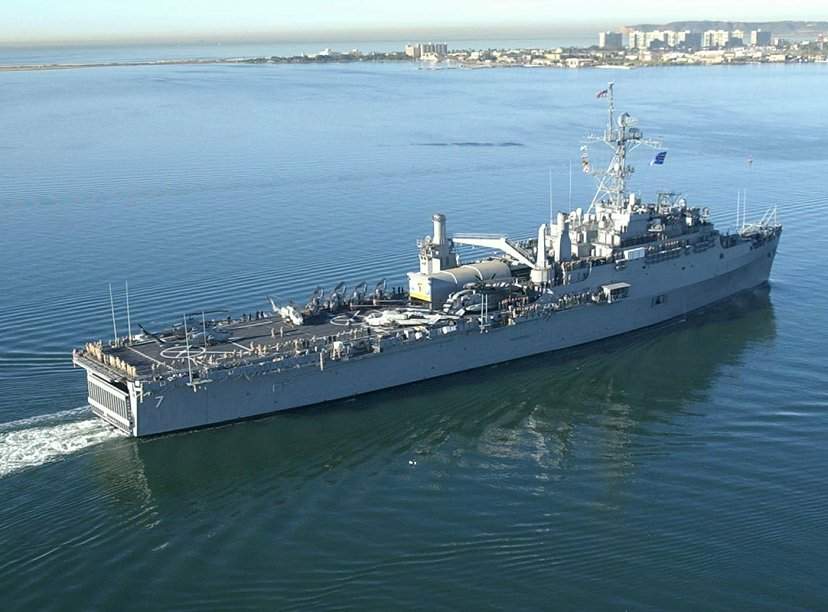

LPD 7 - USS Cleveland
Keel Laid: November 30, 1964
Launched: May 7, 1966
Commissioned: April 21, 1967
Builder: Ingalls Shipbuilding, West Bank, Pascagoula, MS.
Propulsion system: two boilers, two steam turbines
Propellers: two
Length, overall: 569 feet (173.4 meters)
Beam: 105 feet (32 meters)
Draft: 23 feet (7 meters) ballasted: 34 feet (10.4 meters)
Displacement: approx. 16.900 tons full load
Speed: 21 knots
Crew: 24 Officers, 396 Enlisted, Marine detachment ~900
Well deck capacity: one LCAC or one LCU or four LCM-8
or nine LCM-6 or 24 amphibious assault vehicles (AAV)
Armament:
- 2 MK-15 MOD 2 Close-in-Weapons Systems (CIWS)
- 2 MK-38 25mm guns
- 8 .50 - calibre machine guns
Homeport: San Diego, CA.

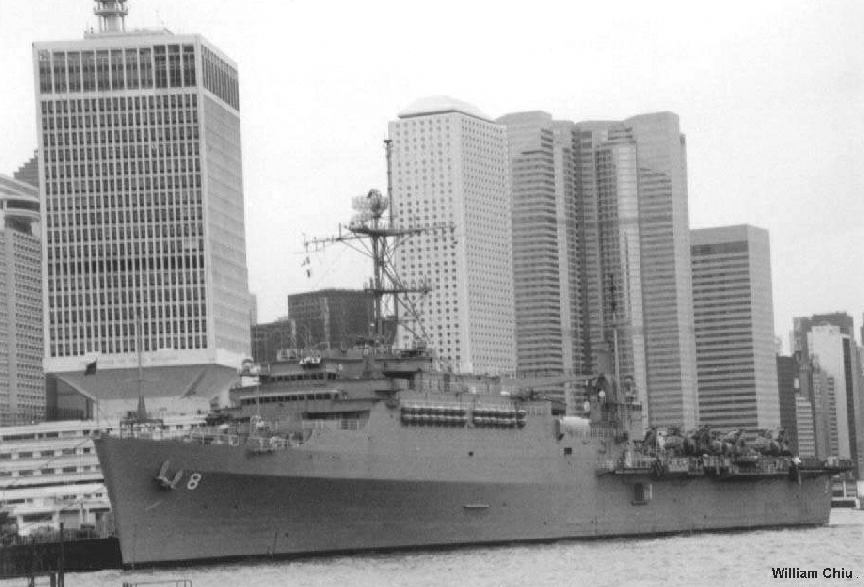

LPD 8 - USS Dubuque
Keel Laid: January 25, 1965
Launched: August 6, 1966
Commissioned: September 1, 1967
Builder: Ingalls Shipbuilding, West Bank, Pascagoula, MS.
Propulsion system: two boilers, two steam turbines
Propellers: two
Length, overall: 569 feet (173.4 meters)
Beam: 105 feet (32 meters)
Draft: 23 feet (7 meters) ballasted: 34 feet (10.4 meters)
Displacement: approx. 16.900 tons full load
Speed: 21 knots
Crew: 24 Officers, 396 Enlisted, Marine detachment ~900
Well deck capacity: one LCAC or one LCU or four LCM-8
or nine LCM-6 or 24 amphibious assault vehicles (AAV)
Armament:
- 2 MK-15 MOD 2 Close-in-Weapons Systems (CIWS)
- 2 MK-38 25mm guns
- 8 .50 - calibre machine guns
Homeport: San Diego, CA.

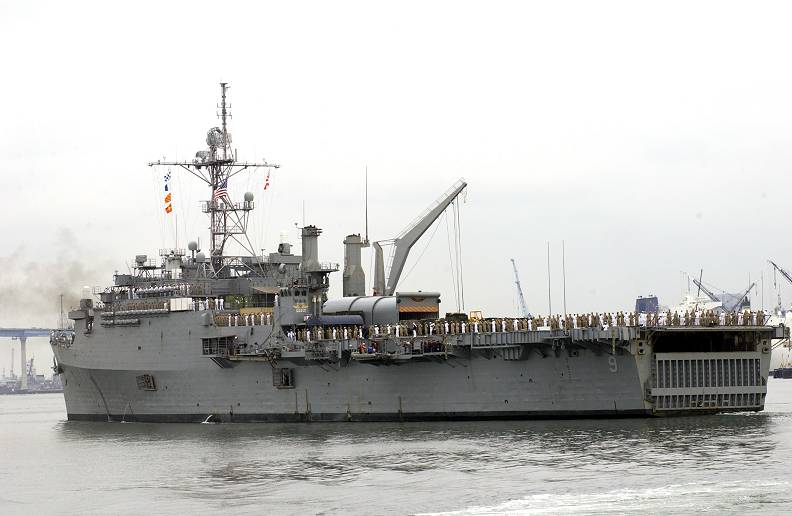

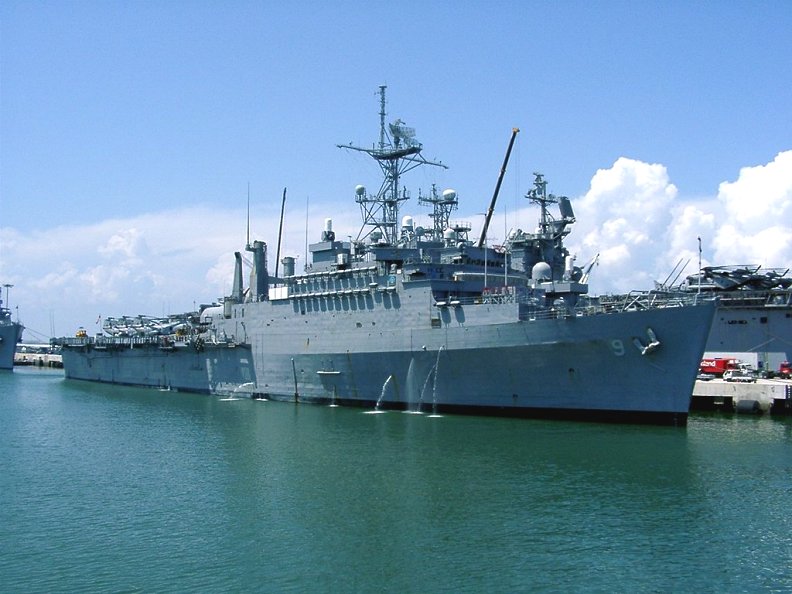

LPD 9 - USS Denver
Keel Laid: July 7, 1964
Launched: January 23, 1965
Commissioned: October 26, 1968
Builder: Lockheed Shipbuilding, Seattle, WA.
Propulsion system: two boilers, two steam turbines
Propellers: two
Length, overall: 569 feet (173.4 meters)
Beam: 105 feet (32 meters)
Draft: 23 feet (7 meters) ballasted: 34 feet (10.4 meters)
Displacement: approx. 16.900 tons full load
Speed: 21 knots
Crew: 24 Officers, 396 Enlisted, Marine detachment ~900
Well deck capacity: one LCAC or one LCU or four LCM-8
or nine LCM-6 or 24 amphibious assault vehicles (AAV)
Armament:
- 2 MK-15 MOD 2 Close-in-Weapons Systems (CIWS)
- 2 MK-38 25mm guns
- 8 .50 - calibre machine guns
Homeport: San Diego, CA.
LPD 10 - USS Juneau
Keel Laid: January 23, 1965
Launched: February 12, 1966
Commissioned: July 12, 1969
Builder: Lockheed Shipbuilding, Seattle, WA.
Propulsion system: two boilers, two steam turbines
Propellers: two
Length, overall: 569 feet (173.4 meters)
Beam: 105 feet (32 meters)
Draft: 23 feet (7 meters) ballasted: 34 feet (10.4 meters)
Displacement: approx. 16.900 tons full load
Speed: 21 knots
Crew: 24 Officers, 396 Enlisted, Marine detachment ~900
Well deck capacity: one LCAC or one LCU or four LCM-8
or nine LCM-6 or 24 amphibious assault vehicles (AAV)
Armament:
- 2 MK-15 MOD 2 Close-in-Weapons Systems (CIWS)
- 2 MK-38 25mm guns
- 8 .50 - calibre machine guns
Homeport: Sasebo, Japan

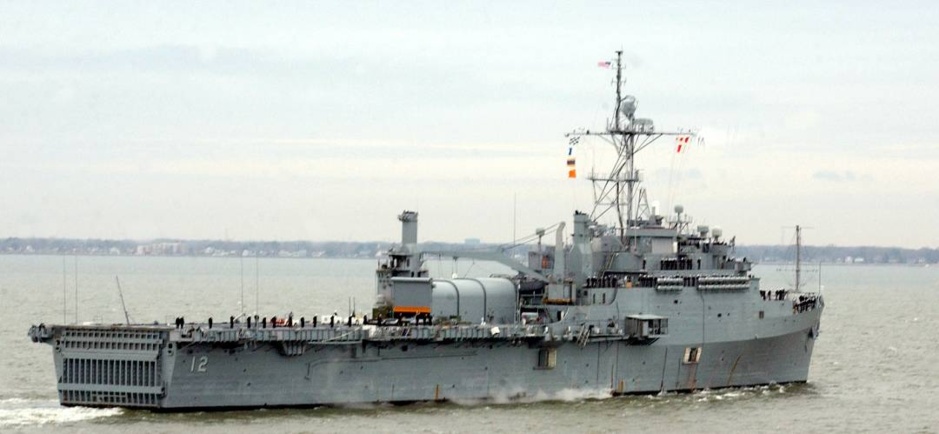

LPD 12 - USS Shreveport
Keel Laid: December 27, 1965
Launched: October 22, 1966
Commissioned: December 12, 1970
Decommissioned: September 26, 2007
Builder: Lockheed Shipbuilding, Seattle, WA.
Propulsion system: two boilers, two steam turbines
Propellers: two
Length, overall: 569 feet (173.4 meters)
Beam: 105 feet (32 meters)
Draft: 23 feet (7 meters) ballasted: 34 feet (10.4 meters)
Displacement: approx. 16.900 tons full load
Speed: 21 knots
Crew: 24 Officers, 396 Enlisted, Marine detachment ~900
Well deck capacity: one LCAC or one LCU or four LCM-8
or nine LCM-6 or 24 amphibious assault vehicles (AAV)
Armament:
- 2 MK-15 MOD 2 Close-in-Weapons Systems (CIWS)
- 2 MK-38 25mm guns
- 8 .50 - calibre machine guns

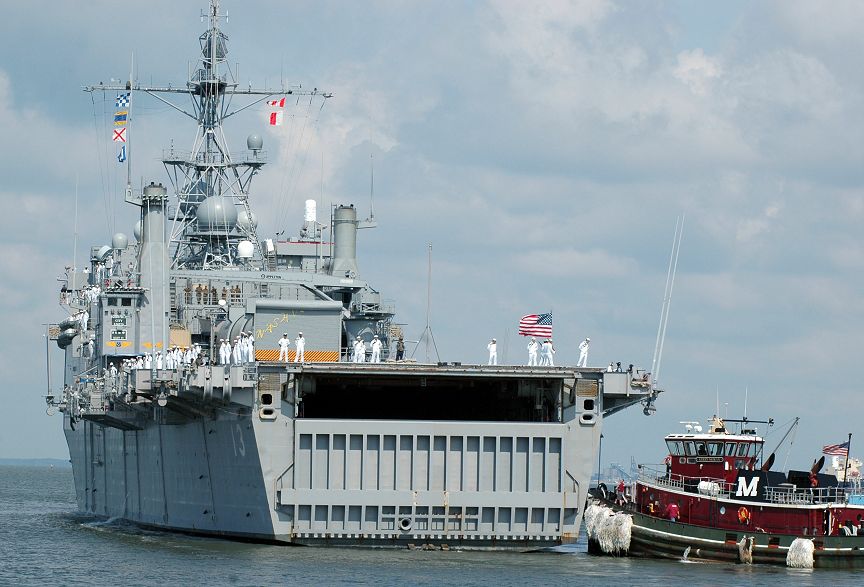

LPD 13 - USS Nashville
Keel Laid: March 14, 1966
Launched: October 7, 1967
Commissioned: February 14, 1970
Builder: Lockheed Shipbuilding, Seattle, WA.
Propulsion system: two boilers, two steam turbines
Propellers: two
Length, overall: 569 feet (173.4 meters)
Beam: 105 feet (32 meters)
Draft: 23 feet (7 meters) ballasted: 34 feet (10.4 meters)
Displacement: approx. 16.900 tons full load
Speed: 21 knots
Crew: 24 Officers, 396 Enlisted, Marine detachment ~900
Well deck capacity: one LCAC or one LCU or four LCM-8
or nine LCM-6 or 24 amphibious assault vehicles (AAV)
Armament:
- 2 MK-15 MOD 2 Close-in-Weapons Systems (CIWS)
- 2 MK-38 25mm guns
- 8 .50 - calibre machine guns
Homeport: Norfolk, VA.

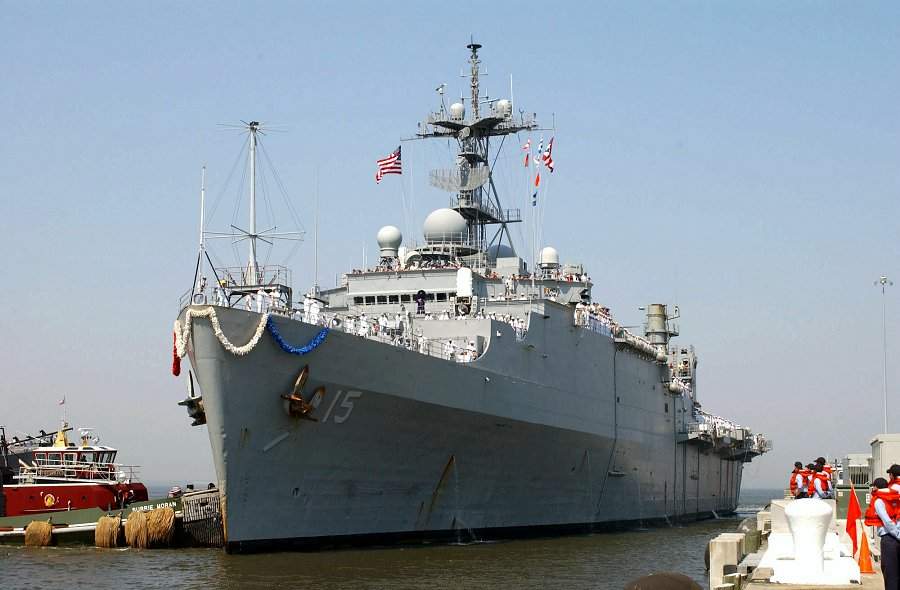

LPD 15 - USS Ponce
Keel Laid: October 31, 1966
Launched: May 20, 1970
Commissioned: July 10, 1971
Builder: Lockheed Shipbuilding, Seattle, WA.
Propulsion system: two boilers, two steam turbines
Propellers: two
Length, overall: 569 feet (173.4 meters)
Beam: 105 feet (32 meters)
Draft: 23 feet (7 meters) ballasted: 34 feet (10.4 meters)
Displacement: approx. 16.900 tons full load
Speed: 21 knots
Crew: 24 Officers, 396 Enlisted, Marine detachment ~900
Well deck capacity: one LCAC or one LCU or four LCM-8
or nine LCM-6 or 24 amphibious assault vehicles (AAV)
Armament:
- 2 MK-15 MOD 2 Close-in-Weapons Systems (CIWS)
- 2 MK-38 25mm guns
- 8 .50 - calibre machine guns
Homeport: Norfolk, VA.

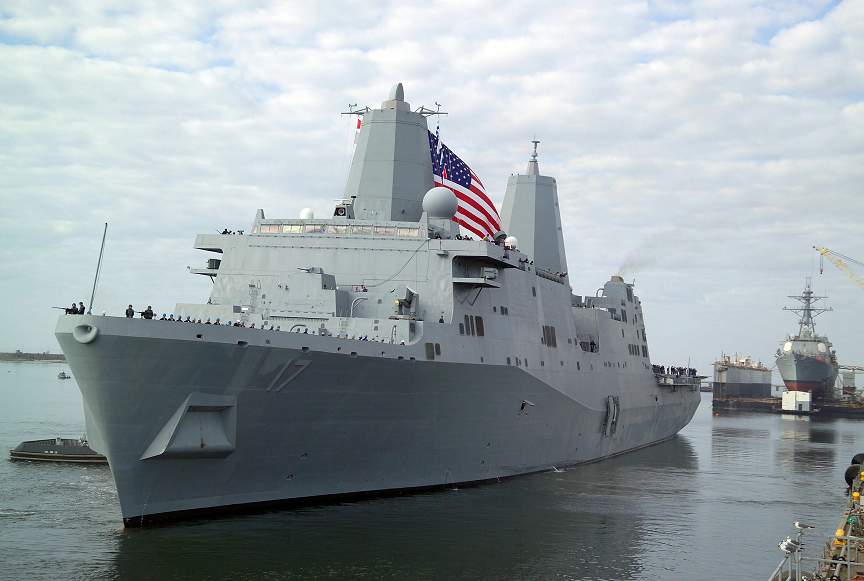

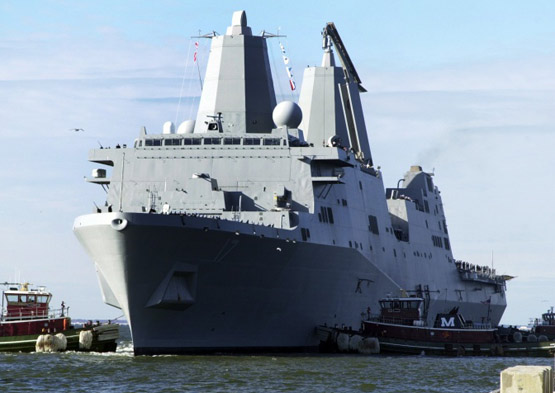

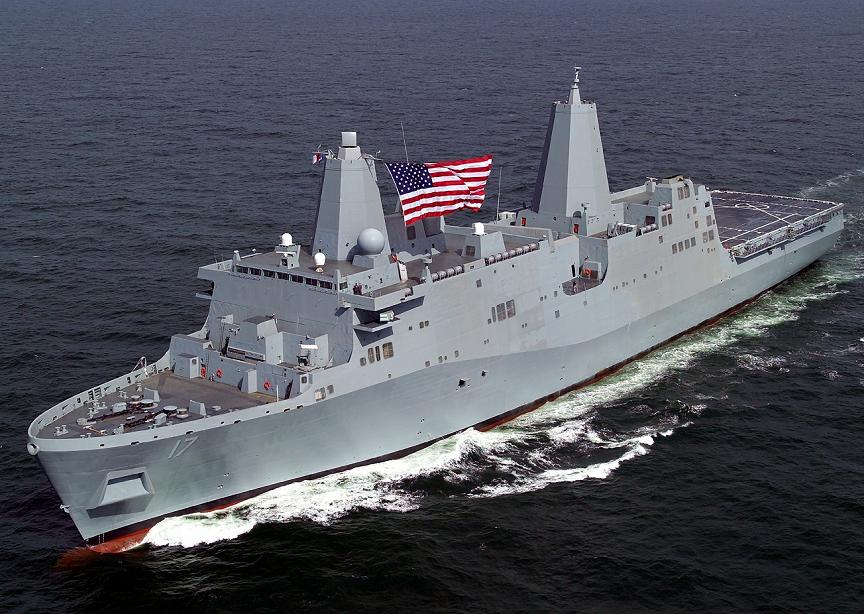

LPD 17 - USS San Antonio
Keel Laid: December 9, 2000
Launched: July 19, 2003
Commissioned: January 14, 2006
Builder: Northroop Grumman Ship Systems, Avondale Division, New Orleans, LA.
Propulsion system: 4 - Colt-Pielstick 2.5 STC diesel engines
Propellers: 2 - Inboard rotating (top) fixed pitch propellers
Length, overall: 684 feet (208.5 meters)
Beam: 105 feet (31.9 meters)
Draft: 23 feet (7.0 meters)
Displacement: approx. 25.000 tons full load
Speed: ~22 knots
Crew: 28 Officers, 30 CPO/SNCO, 332 Enlisted;
Marine detachment: 699 (66 officers, 633 enlisted); surge to 800 total
Well deck capacity: two LCACs or one LCU; 14 EFVs
Aviation: one CH-53E, or two CH-46s, or one MV-22, or three UH/AH-1s
Armament:
- 2 - MK 31 Mod 0 RAM (Rolling Airframe Missile) Launchers
- 2 - MK 46 Mod 1 30mm Gun systems
- 2 - MK 26 Mod 18 .50 Cal Machine guns
Homeport: Norfolk, VA.

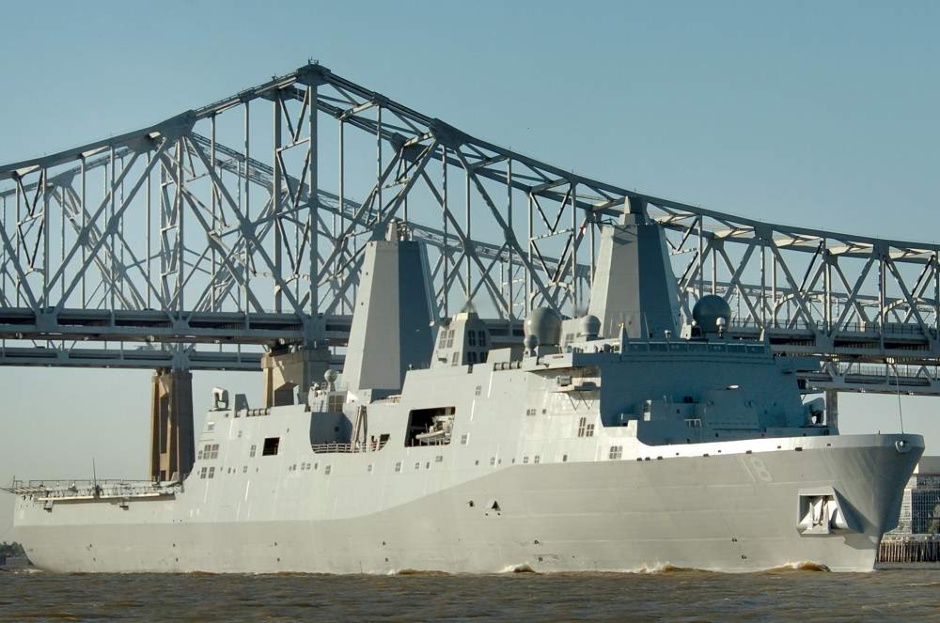

LPD 18 - New Orleans
Keel Laid: October 14, 2002
Launched: November 20, 2004
Commissioned: March 10, 2007
Builder: Northroop Grumman Ship Systems, Avondale Division, New Orleans, LA.
Propulsion system: 4 - Colt-Pielstick 2.5 STC diesel engines
Propellers: 2 - Inboard rotating (top) fixed pitch propellers
Length, overall: 684 feet (208.5 meters)
Beam: 105 feet (31.9 meters)
Draft: 23 feet (7.0 meters)
Displacement: approx. 24.433 tons full load
Speed: ~22 knots
Crew: 28 Officers, 30 CPO/SNCO, 332 Enlisted;
Marine detachment: 699 (66 officers, 633 enlisted); surge to 800 total
Well deck capacity: two LCACs
Aviation: one CH-53E, or two CH-46s, or one MV-22, or three UH/AH-1s
Armament:
- 2 - MK 31 Mod 0 RAM (Rolling Airframe Missile) Launchers
- 2 - MK 46 Mod 1 30mm Gun systems
- 2 - MK 26 Mod 18 .50 Cal Machine guns
Homeport: San Diego, CA.
LPD 19 - Mesa Verde
|
Awarded: |
29 February 2000 |
|
Laid down: |
25 February 2003 |
|
Launched: |
19 November 2004 |
|
Commissioned: |
Dec. 15 2007 P.C. F.L. |
|
Status: |
In workups |
|
Homeport: |
Norfolk Virginia |
|
General Characteristics | |
|
Displacement: |
24,433 tons full |
|
Length: |
208.4 meters (684 ft) overall, 201.4 meters (661 ft) waterline |
|
Beam: |
32 meters (105 ft) extreme, 29.5 meters (97 ft) waterline |
|
Draft: |
7 meters (23 ft) |
|
Propulsion: |
Four Colt-Pielstick diesel engines, two shafts, 40,000 hp (30 MW) |
|
Speed: |
22 knots (41 km/h) |
|
Range: |
|
|
Complement: |
28 officers, 332 enlisted, and 3 Marines |
|
Armament: |
Rolling Airframe Missile]] launchers for air defense |
|
Aircraft: |
Four CH-46 Sea Knight helicopters or two MV-22 tilt rotor aircraft may be launched or recovered simultaneously. |
|
Landing Craft: |
Two LCACs (air cushion) or one LCU (conventional); |
|
Troops: |
699 (66 officers, 633 enlisted); surge to 800 total. |
|
Motto: |
Courage Teamwork Tradition |

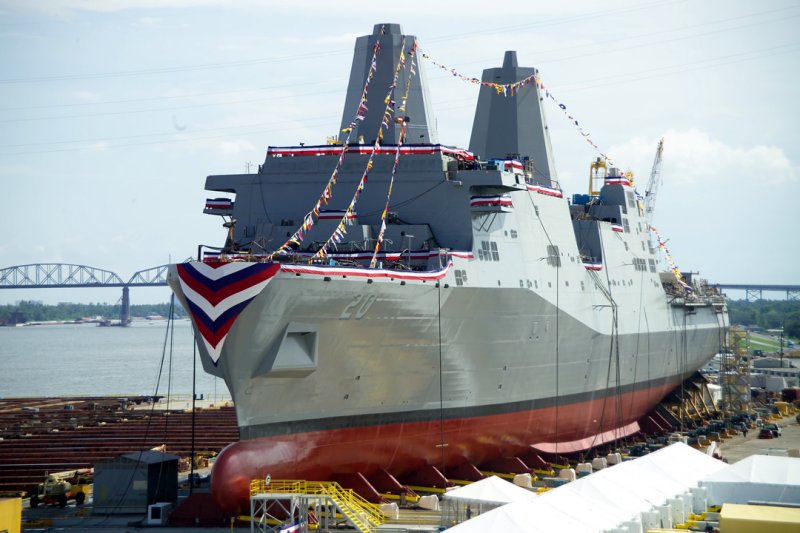

LPD 20 - Green Bay
|
Ordered: |
30 May 2000 |
|
Laid down: |
11 August 2003 |
|
Christened: |
15 July 2006 |
|
Commissioned: |
2007 (scheduled) |
|
Status: |
Under construction in US by Navy, assigned to PACFLT |
|
General Characteristics | |
|
Displacement: |
24,333 tons |
|
Length: |
208.4 m (684 ft) overall, |
|
Beam: |
32 m (105 ft) extreme, |
|
Draft: |
7 m (23 ft) |
|
Propulsion: |
Four Colt-Pielstick diesel engines, two shafts, 40,000 hp (30 MW) |
|
Speed: |
22 knots (41 km/h) |
|
Range: |
|
|
Complement: |
33 officers, 364 enlisted |
|
Armament: |
2 × 30 mm Bushmaster II guns for surface threat defense; |
|
Aircraft: |
Four CH-46 Sea Knight helicopters or two MV-22 tilt rotor aircraft may be launched or recovered simultaneously. |
|
Landing Craft: |
Two LCACs (air cushion) or one LCU (conventional); |
|
Troops: |
699 (66 officers, 633 enlisted); surge to 800 total. |
|
Motto: |
Statum Bello Invictus Maneo (“Stand and Fight, Remain Unvanquished”) |
LPD 21 - New York
|
Awarded: |
25 November 2003 |
|
Laid down: |
10 September 2004 |
|
Launched: |
|
|
Commissioned: |
|
|
Status: |
Under Construction |
|
Homeport: |
|
|
General Characteristics | |
|
Displacement: |
24,900 tons full |
|
Length: |
208.5 m (684 ft) overall, |
|
Beam: |
31.9 m (105 feet) extreme, 29.5 m (97 ft) waterline |
|
Draft: |
7 m (23 ft) |
|
Propulsion: |
Four Colt-Pielstick diesel engines, two shafts, 40,000 hp (30 MW) |
|
Speed: |
22 knots (41 km/h) |
|
Range: |
|
|
Complement: |
28 officers, 333 enlisted |
|
Armament: |
Two 30 mm Bushmaster II, for surface threat defense; |
|
Aircraft: |
Four CH-46 Sea Knight helicopters or two MV-22 tilt rotor aircraft may be launched or recovered simultaneously. |
|
Landing Craft: |
Two LCACs (air cushion) or one LCU(conventional) |
|
Troops: |
699 (66 officers, 633 enlisted); surge to 800 total. |
|
Motto: |
Never Forget |

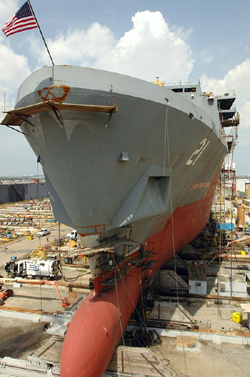

LPD 22 - San Diego
|
Awarded: |
1 June 2006 |
|
Laid down: |
23 May 2007 |
|
Launched: |
2008 (scheduled) |
|
Commissioned: |
2009 (scheduled) |
|
Status: |
Under construction |
|
General Characteristics | |
|
Displacement: |
25,000 tons full |
|
Length: |
208.5 m (684 ft) overall, |
|
Beam: |
31.9 m (105 feet) extreme, 29.5 m (97 ft) waterline |
|
Draft: |
7 m (23 ft) |
|
Propulsion: |
Four Colt-Pielstick diesel engines, two shafts, 40,000 hp (30 MW) |
|
Speed: |
22 knots (41 km/h) |
|
Range: |
|
|
Complement: |
28 officers, 333 enlisted |
|
Armament: |
Two 30 mm Bushmaster II cannons, for surface threat defense; two Rolling Airframe Missile launchers for air defense |
|
Aircraft: |
Four CH-46 Sea Knight helicopters or two MV-22 tilt rotor aircraft may be launched or recovered simultaneously. |
|
Landing Craft: |
Two LCACs (air cushion) or one LCU (conventional); |
|
Troops: |
699 (66 officers, 633 enlisted); surge to 800 total. |
LPD 23 - Anchorage
|
Awarded: |
June 1, 2006 |
|
Laid down: |
24 September 2007 |
|
Launched: |
2008 (scheduled) |
|
Commissioned: |
2009 (scheduled) |
|
Status: |
Awarded |
|
General Characteristics | |
|
Displacement: |
25,000 tons full |
|
Length: |
208.5 m (684 ft) overall, |
|
Beam: |
31.9 m (105 ft) extreme, 29.5 m (97 ft) waterline |
|
Draft: |
7 m (23 ft) |
|
Propulsion: |
Four Colt-Pielstick diesel engines, two shafts, 40,000 hp (30 MW) |
|
Speed: |
22 knots (41 km/h) |
|
Range: |
|
|
Complement: |
28 officers, 333 enlisted |
|
Armament: |
Two 30 mm close-in guns, for surface threat defense; two Rolling Airframe Missile launchers for air defense |
|
Aircraft: |
Four CH-46 Sea Knight helicopters or two MV-22 tilt rotor aircraft may be launched or recovered simultaneously. |
|
Landing Craft: |
Two LCACs (air cushion) or one LCU (conventional); |
|
Troops: |
699 (66 officers, 633 enlisted); surge to 800 total. |
LPD 24 - Arlington
|
Laid down: |
2007 (scheduled) |
|
Launched: |
2009 (scheduled) |
|
Commissioned: |
2010 (scheduled) |
|
Status: |
|
|
General Characteristics | |
|
Displacement: |
25,000 tons full |
|
Length: |
208.5 m (684 ft) overall, |
|
Beam: |
31.9 m (105 ft) extreme, 29.5 m (97 ft) waterline |
|
Draft: |
7 m (23 ft) |
|
Propulsion: |
Four Colt-Pielstick diesel engines, two shafts, 40,000 hp (30 MW) |
|
Speed: |
22 knots (41 km/h) |
|
Range: |
|
|
Complement: |
28 officers, 333 enlisted |
|
Armament: |
Two 20 mm close-in gunsVulcan Phalanx, for surface threat defense; two Rolling Airframe Missile launchers for air defense |
|
Aircraft: |
Four CH-46 Sea Knight helicopters or two MV-22 Osprey tilt rotor aircraft may be launched or recovered simultaneously. |
|
Landing Craft: |
Two LCACs (air cushion) or one LCU (conventional); |
|
Troops: |
699 (66 officers, 633 enlisted); surge to 800 total. |
LPD 25 - Somerset
|
Laid down: |
2008 (scheduled) |
|
Launched: |
2010 (scheduled) |
|
Commissioned: |
2011 (scheduled) |
|
Status: |
|
|
General Characteristics | |
|
Displacement: |
25,000 tons full |
|
Length: |
208.5 m (684 ft) overall, |
|
Beam: |
31.9 m (105 ft) extreme, 29.5 m (97 ft) waterline |
|
Draft: |
7 m (23 ft) |
|
Propulsion: |
Four Colt-Pielstick diesel engines, two shafts, 40,000 hp (30 MW) |
|
Speed: |
22 knots (41 km/h) |
|
Range: |
|
|
Complement: |
28 officers, 333 enlisted |
|
Armament: |
Two 30 mm Bushmaster II cannons, for surface threat defense; two Rolling Airframe Missile launchers for air defense |
|
Aircraft: |
Four CH-46 Sea Knight helicopters or two MV-22 tilt rotor aircraft may be launched or recovered simultaneously. |
|
Landing Craft: |
Two LCACs (air cushion) or one LCU (conventional); |
|
Troops: |
699 (66 officers, 633 enlisted); surge to 800 total. |
[세계삼한역사연구-한부울]
'무기리스트 > 세계전투함정' 카테고리의 다른 글
| 미국 순양함 CG 전체명세 (0) | 2007.11.20 |
|---|---|
| 미국 도크형 수송양륙함 LSD 전체명세 (0) | 2007.11.19 |
| 미국 상륙지휘통제함(US LCC)전체명세 (0) | 2007.11.19 |
| 미국 크루즈미사일 핵잠수함(US SSGN)전체명세 (0) | 2007.11.15 |
| 미국 탄도미사일 핵잠수함(US SSBN)전체명세 (0) | 2007.11.15 |
